Briggs and Stratton Vertical Engines

Grade Commercial
Shaft Size 1.125" x 4.29"
Power 27 HP
Displacement 810cc
Warranty: 2 Years Consumer/ 2 Years Commercial
Air Cleaner Type: Cyclonic Filter
Throttle Control: Remote
Starter Type: Electric
Carburetor Type: Float
Valve Style: OHV
Muffler: No
Bore x Stroke: 3.20" x 2.89"
Crankshaft Rotation Direction (From PTO Shaft Side): Counterclockwise
Dura-Bore cast iron cylinder sleeve for extended life
Dependable float feed type carburetor with integral fuel pump for remote mount fuel tank
Maintenance-free Magnetron electronic ignition for quick, dependable starts
Mechanical compresison release for smooth, quick starting
Cyclonic air filter provides ultimate debris protection and lasts 2X longer than panel style air cleaner systems
Full pressure lubrication with spin-on oil filter assures controlled lubrication for extended component life
Bore: 3.3 inches
Stroke: 2.89 inches
Oil Capacity: 64 fl. oz
Engine Fuel: Gasoline
Cylinders: 2
Air Cleaner: Cyclonic Filter
Bearings: High Radial Load PTO
Crankshaft Number: 792470
Cylinder Head: Twin with Cast Iron Sleeve
Deflectors: Without
Dipstick: In crankcase
Oil Drain: Right Side
Flywheel: Heavy Equipment for Electric Start
Fuel System: Without Fuel Tank
Governor: Mechanical Governor
Exhaust: Without Muffler
Starting: 12 Volt Heavy Duty Starter
Warranty: 2 Year Limited Consumer Warranty
Bore Type: Sleevebore
Shaft Size 1-1/8" x 4-5/16"
Equipment Type Zero Turn Mower
Power 30 HP

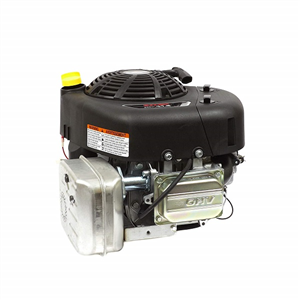

Shaft Size 1" x 3-5/32"
Power 17.5 HP
Displacement 500cc
Grade Residential
Equipment Type Riding Mower
Warranty: 2 Year Consumer, 1 Year Commercial
Dura-Bore™ cast iron cylinder sleeve for extended life.
Exhaust included.
Overhead valve design (OHV) for cooler operation and longer valve life.
9 amp charging system.
Air Cleaner: Cartridge Type
Bearings: Plain PTO
Bore Type: Sleevebore
Governor: Mechanical Governor
Oil Capacity: 48 fl. oz
Oil Drain: Opposite Carb Side
Fuel System: Without Fuel Tank
Engine Fuel: Gasoline
Starting: Regular 12 Volt
Deflectors: Without
Cylinders: 1
Crankshaft Number: 796948
Cylinder Head: Aluminum with Cast Iron Sleeve
Dipstick: Opposite Carb Side
Flywheel: Heavy Equipment for Electric Start
Exhaust: Quiet Performance Installed Muffler
Warranty: 2 Year limited Consumer Warranty
Bore: 3.56"
Stroke: 3.06"

Displacement 190cc
Shaft Size 25mm x 3-5/32"
Grade Commercial

Displacement 724cc
Equipment Type Zero Turn Mower
Power 24 HP
Shaft Size 1" x 3-5/32"
16 amp DC alternator
4 Cycle Engine
Dependable float feed type carburetor with integral fuel pump for remote mount fuel tank
DU PTO bearing for greater side loads
Dura-Bore™ cat iron cylinder sleeves for extended life
Exhaust omitted
Oil Capacity: 64 fl. oz
Starting: Electric
Grade Residential
Bore: 3.12 inches
Stroke: 2.89 inches
Oil Capacity: 64 fl. oz
Engine Fuel: Gasoline
Cylinders: 2
Air Cleaner: Cartridge with Pre Filter
Bearings: High Radial Load PTO
Bore Type: Sleevebore
Crankshaft Number: 795686
Cylinder Head: Twin with Cast Iron Sleeve
Deflectors: Without
Dipstick: In Crankcase
Oil Drain: Right Side
Flywheel: Heavy Equipment for Electric Start
Governor: Mechanical Governor
Fuel System: Without Fuel Tank
Exhaust: Without Muffler
Starting: 12 Volt High Output Long Frame Version
Warranty: 2 Year Limited Consumer Warranty
Shaft Size 1" x 3-5/32"
Equipment Type Zero Turn Mower
Power 27 HP
Displacement 724cc
Starting: Electric
Dura-Bore™ cat iron cylinder sleeves for extended life
Dependable float feed type carburetor with integral fuel pump for remote mount fuel tank
DU PTO bearing for greater side loads
16 amp DC alternator
Exhaust omitted
4 Cycle Engine
Power 24 HP

Shaft Size 25mm x 3-5/32"
Displacement 163cc
Grade Residential
ReadyStart® system makes starting easier, no prime, no choke.
Lo-Tone™ muffler provides a quieter and better sounding engine.
Large rewind starter reduces pulling effort for easy starting.
Fixed speed 3200 rpm.
Tapped 3/8-24
Equipment Type Walk Behind Mower
Power 7.25 Gross Torque

Displacement: 190cc
Bore: 2.69 inches
Stroke: 2.04 inches
Oil Capacity: 20 fl. oz
Engine Fuel: Gasoline
Cylinders: 1
Air Cleaner: Dual Element
Bearings: Plain PTO
Bore Type: Koolbore
Crankshaft Number: 498565
Cylinder Head: Aluminum
Deflectors: Louvered Loose
Dipstick: Opposite Carb Side
Oil Drain: Opposite Carb Side
Flywheel: Light, Non-Electric Start and Non-Alt
Governor: Mechanical Governor
Exhaust: Performance Muffler
Starting: Rewind, Position 6:00 O Clock
Warranty: 2 Year Limited Consumer Warranty
Shaft Size 7/8" x 3-5/32"
Power 6.75 Gross Torque
Flywheel: Light Non-Electric Start & Non-Alt
Exhaust: Performance Muffler Installed
Starting: Rewind, position 6:00 O'Clock
Lo-Tone™ muffler provides a quieter and better sounding engine.
Maintenance-free Magnetron® electronic ignition for quick, dependable starts.
Float feed carburetor delivers consistent one pull start
Large rewind starter reduces pulling effort for easy starting
Equipment Type Walk Behind Mower
Displacement 190cc
Note: Not for Log Splitters.
Warranty: Consumer 2 years, Commercial 90 days
ReadyStart® system makes starting easier, no prime, no choke
Lo-Tone™ muffler provides a quieter and better sounding engine.
Maintenance-free Magnetron® electronic ignition for quick, dependable starts.
Large rewind starter reduces pulling effort for easy starting.
Float feed carburetor delivers consistent one pull start.
Fixed speed 3200 rpm.
Power 7.25 Gross Torque
Displacement 163cc

Grade Residential
Shaft Size 25mm x 3-5/32"
Power 8.5 Gross Torque
Bore: 2.69 inches
Stroke: 2.04 inches
Oil Capacity: 20 fl. oz
Engine Fuel: Gasoline
Cylinders: 1
Air Cleaner: Dual Element Oval
Bearings: Plain PTO
Bore Type: Sleevebore
Crankshaft Number: 799214
Cylinder Head: Aluminum with Cast Iron Sleeve
Dipstick: Opposite Carb Side
Oil Drain: Opposite Carb Side
Flywheel: Light Non-Electric Start and Non-Alt
Fuel System: Fresh Tethered Fuel Tank
Governor: Mechanical Governor
Ehaust: Performance with Tube Outlet Installed Muffler
Starting: Rewind, position 5:30 O'Clock
Warranty: 2 Year Limited Consumer Warranty
Equipment Type Walk Behind Mower
Displacement 190cc
ReadyStart® system makes starting easier, no prime, no choke
Dura-Bore™ cast iron cylinder sleeve for extended life
Certified to CARB Tier III and meets EPA 2012 Phase 3 standards
Maintenance-free Magnetron® electronic ignition for quick, dependable starts

Power 24HP
Shaft Size 1 1/8" X 4 5/16"
16 amp DC alternator
Dependable float feed type carburetor with integral fuel pump for remote mount fuel tank
DU PTO bearing for greater side loads
Dura-Bore™ cast iron cylinder sleeves for extended life
Engine Type: V-Twin
Exhaust omitted
Start: Electric

Power 11.5 HP
Shaft Size 1" x 3-5/32"
Displacement 344cc
Grade Residential
Starting: Electric and Rewind
Dura-Bore™ cast iron cylinder sleeve for extended life
Dual circuit charging system
Exhaust included
Dual-Clean™ air cleaner pleated paper filter with a foam pre-cleaner ensures maximum protection for extended engine life
Overhead valve(OHV) for cooler operation and longer valve life
Electric start with back-up recoil
Power 10.5 HP

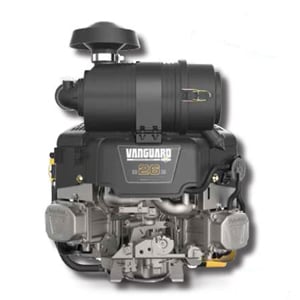

Power 26 HP
Displacement 810cc
Grade Commercial
Shaft Size 1-1/8" x 4-19/64"
Equipment Type Zero Turn Mower
Tapped 7/16-20
Warranty: 3 Years
Cyclonic air filter provides ultimate debris protection.
Increased cylinder block structure for added strength and durability.
Full lubrication with spin-on oil filter.
Cooling fin inspection panels speed debris inspection and cleaning.
12 volt solenoid shift starter.
Exhaust omitted must order muffler kit part number 594583.
