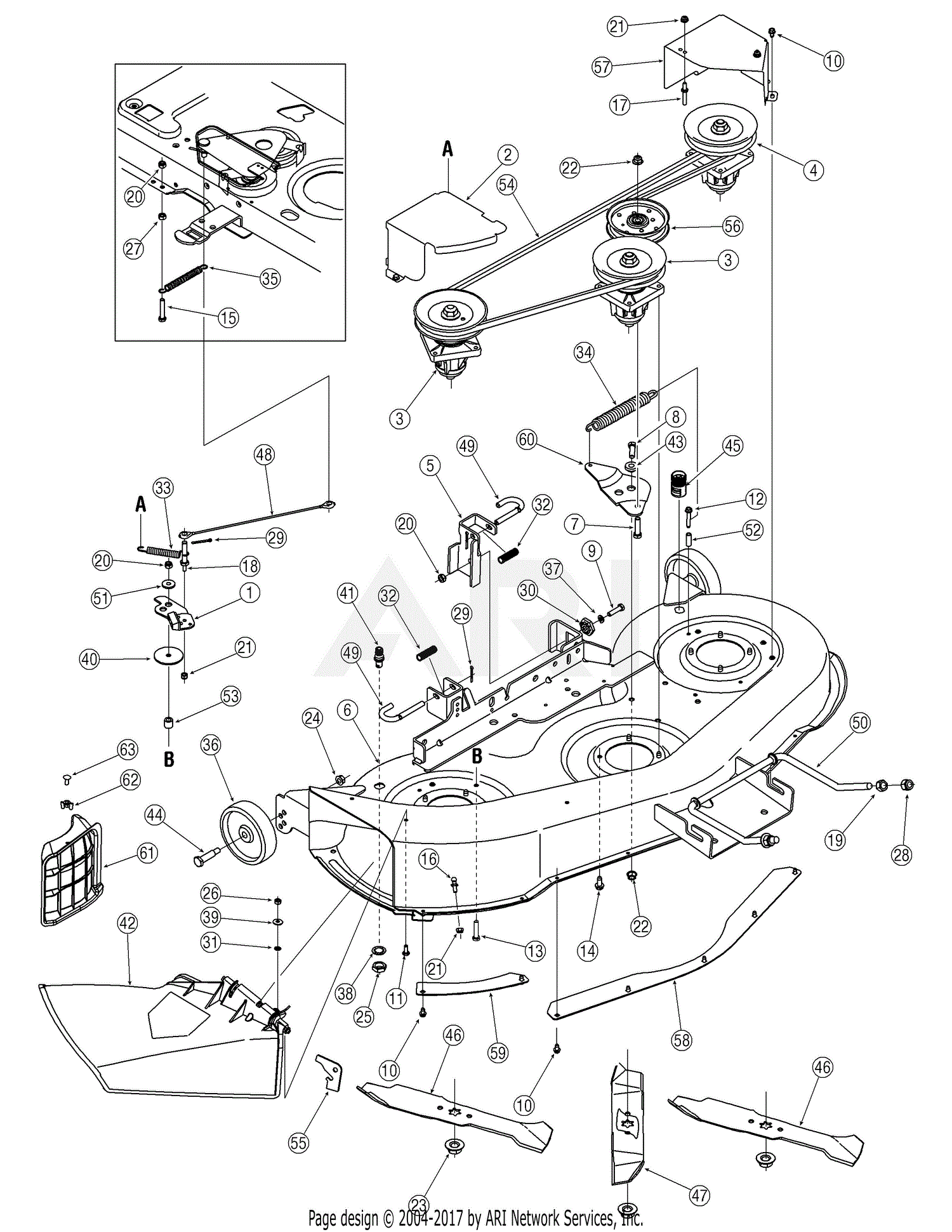

MTD 13AP606H790 LT-946G (2006) Deck Assembly Parts Diagram

SWIPE SWIPE

13AP606H790 LT-946G (2006) Deck Assembly

Move

JavaScript Disabled - Unable to show Cart

1

97116

Deck Brake Assembly

$49.01

Add to Cart
2

17258E

USE 17258E

$42.65

Add to Cart
3

17983

NO LONGER AVAILABLE
Not shown

Add to Cart
4

7360315

WASHER FL
Not shown

Add to Cart
5

6830254B

USE 683-0254B
*CHOOSE COLOR WHEN ORDERING*

No Longer Available

Add to Cart
6

98304104A

USE 983-04104A
*CHOOSE COLOR WHEN ORDERING*

$983.12

Add to Cart
7

7100520

Hex Screw

$3.97

Add to Cart
8

7100514

Hex Screw

$3.82

Add to Cart
9

7100528

Hex Screw

$3.93

Add to Cart
10

7100599

Screw

$3.90

Add to Cart
11

7103015

Hex Screw

$3.68

Add to Cart
12

7100778

Hex Screw

$3.93

Add to Cart
13

7100805A

SCREW HEX CAP

$3.78

Add to Cart
14

7101260A

Screw

Add to Cart
15

7103180

Hex Bolt

Add to Cart
16

91104069

Grass Catcher Pin

$7.89

Add to Cart
17

9110993

Belt Guard Pin

$3.93

Add to Cart
18

7111554

PIN 1/4 20X3/8 X2

$9.71

Add to Cart
19

7120206

1/2 13 HEX NUT

$3.93

Add to Cart
20

71204063

5/16 Flange Nut

$3.60

Add to Cart
21

71204064

Nut

$3.67

Add to Cart
22

71204065

Flange Lock Nut

$3.71

Add to Cart
23

7120417A

Flange Nut

Add to Cart
24

9120431

Hex Lock Nut

$4.34

Add to Cart
25

7120641

HEX NUT M16 1.5

$5.62

Add to Cart
26

7123006

Nut

$4.08

Add to Cart
27

7123010

NUT HEX 5/16 18

$3.92

Add to Cart
28

7123083

Hex Lock Nut

$4.08

Add to Cart
29

7140470

PIN COTTER 1/8 DIA

$3.93

Add to Cart
30

91704074

Deck Adjustment Gear

$11.56

Add to Cart
31

7260233

RETAINER BOLT 1/4X

$3.97

Add to Cart
32

9320306A

Compression Spring

$7.75

Add to Cart
33

9320429A

Extension Spring

$8.36

Add to Cart
34

9320594A

Extension Spring

$13.87

Add to Cart
35

73204197

Extension Spring

$6.42

Add to Cart
36

7340973

Plastic Wheel

Add to Cart
37

9360119

Lock Washer

$4.34

Add to Cart
38

9360760

WASH LOCK SCHNORR

$3.90

Add to Cart
39

7360270

Bell Washer

$3.66

Add to Cart
40

7360418A

WASHER FL

$9.18

Add to Cart
41

73704003D

Deck Wash Nozzle

$20.88

Add to Cart
42

63105229

Discharge Chute

$73.74

Add to Cart
43

9380347

Shoulder Spacer

$9.00

Add to Cart
44

9380373

Shoulder Screw

$8.52

Add to Cart
45

92104041

Water Nozzle Adaptor

$18.95

Add to Cart
46

9420611A

3-in-1 Blade

Add to Cart
47

9420612A

3 in 1 Blade

Add to Cart
48

7461107

12" Bracket Cable

$14.49

Add to Cart
49

7471116

Deck Release Pin

$11.27

Add to Cart
50

7471130B

Front Deck Rod

$36.86

Add to Cart
51

7480234

Shoulder Spacer

$3.90

Add to Cart
52

7500566A

Spacer

$9.26

Add to Cart
53

7501320

NO LONGER AVAILABLE

No Longer Available

Add to Cart
54

9540349

Belt

Add to Cart
56

75308171

Idler Pulley Kit

Add to Cart
57

7831348D

USE 783-1348D
*CHOOSE COLOR WHEN ORDERING*

No Longer Available

Add to Cart
58

78301410637

SKIRT DECK CENTER

$57.76

Add to Cart
59

78301420637

Right Hand Skirt Deck

$42.87

Add to Cart
60

78304641A0637

NO LONGER AVAILABLE

No Longer Available

Add to Cart
61

73105264

Mulch Plug

$25.54

Add to Cart
62

7123087

NUT WING 1/4 20

$3.57

Add to Cart
63

7100134

Carriage Bolt

$3.75

Add to Cart
