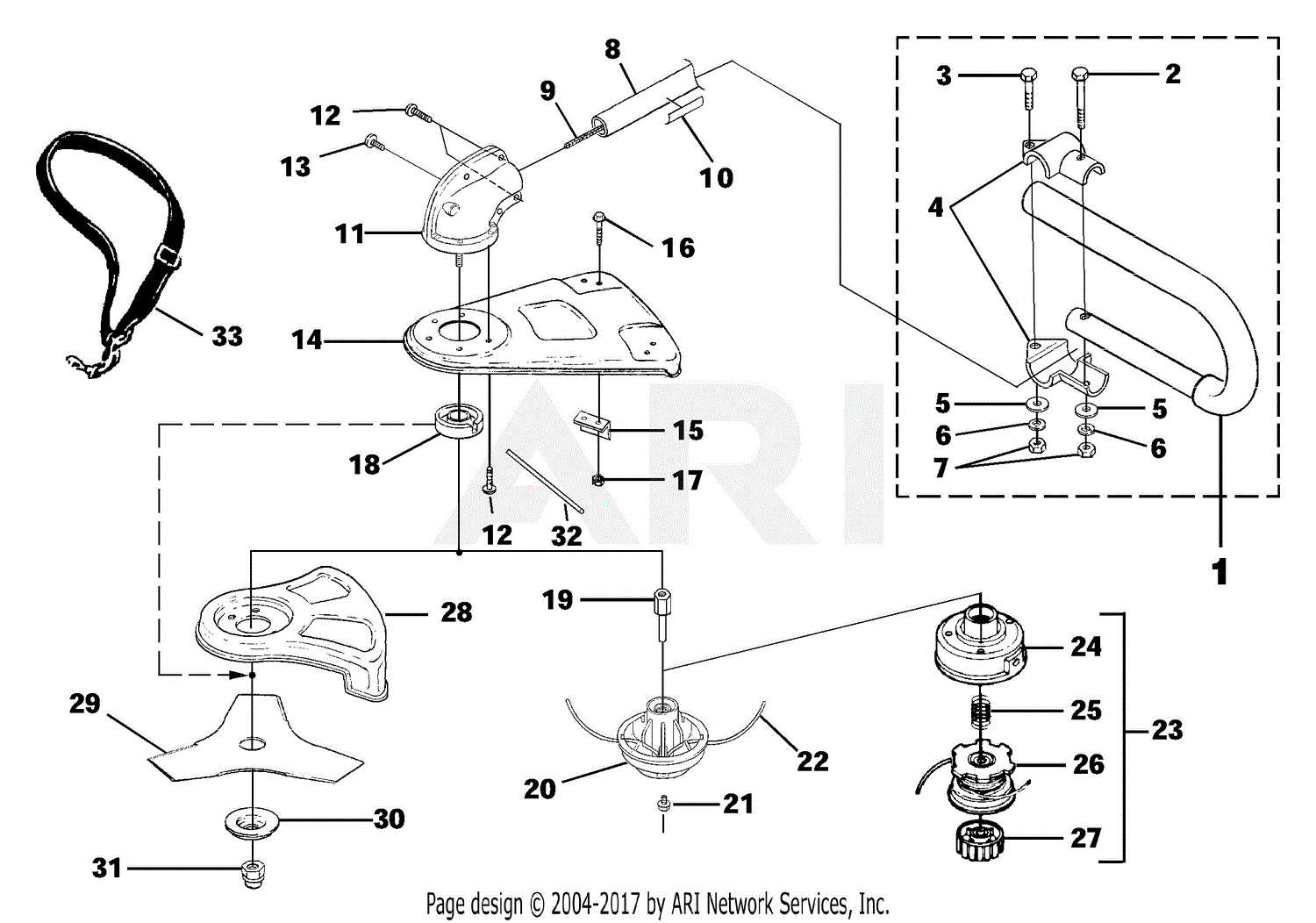

Homelite BC2500MR String Trimmer UT-15204 15204-UT BC2500MR String Trimmer UT-15204 BC2500MR String Trimmer Shaft - Spool & String - Grass Deflector - Blade Guard - Blade Parts Diagram
SWIPE
SWIPE
Accessories
Carburetor - Fuel Tank
Engine Internal
Ignition - Rotor - Starter - Clutch
Muffler - Air Cleaner
Shaft - Spool & String - Grass Deflector - Blade Guard - Blade
BC2500MR String Trimmer UT-15204 15204-UT BC2500MR String Trimmer UT-15204 BC2500MR String Trimmer Shaft - Spool & String - Grass Deflector - Blade Guard - Blade
Move
JavaScript Disabled - Unable to show Cart
1
UP06534
NLA/HANDLE FRONT J
Includes items 2-7
No Longer Available
Add to Cart
2
82278
BOLT,HEX HD.
$1.00
Add to Cart
3
82496
NLA/BOLT 1 4 20 X 1 I
No Longer Available
Add to Cart
4
099075001007
HANDLE BAR CLAMP
No Longer Available
Add to Cart
5
678013001
WASHER FLAT
$0.92
Add to Cart
6
83009
WASHER,LOCK
$4.18
Add to Cart
7
81242
NUT HEX
Torque Specs 90-100 In/Lbs, 10.2-11.3 Nm.
$0.92
Add to Cart
8
UP02969A
NLA/DRIVESHAFT HSG VE
Includes items 9-10
No Longer Available
Add to Cart
9
98818
Flexible Driveshaft (No Longer Available)
No Longer Available
Add to Cart
10
PS02750
NLA/WARNING DECAL,TRI
No Longer Available
Add to Cart
11
UP06970
GEARHEAD 120 DEG W/H
Includes items 12-13
$50.88
Add to Cart
12
82459
NLA/SCREW,10 24 X .50
Torque Specs 15-20 In/Lbs, 1.7-2.3 Nm.
No Longer Available
Add to Cart
13
PS01605
NLA/SCREW,TAPTITE TRU
Torque Specs 40-50 In/Lbs, 4.5-5.6 Nm.
No Longer Available
Add to Cart
14
A04683A
NLA/GRASS DEFLECTOR K
Includes items 15-17
No Longer Available
Add to Cart
15
07076
NLA/BLADE,CUT OFF
No Longer Available
Add to Cart
16
80869
NLA/SCREW
No Longer Available
Add to Cart
17
81208
NLA/NUT LOC HX 10 24
Torque Specs 30-50 In/Lbs, 3.4-5.6 Nm.
No Longer Available
Add to Cart
18
099078001005
WASHER FLANGED
$5.46
Add to Cart
19
04355
Adapter Shaft
Torque Specs 100-120 In/Lbs, 11.3-13.6 Nm.
$9.74
Add to Cart
20
DA09364A
STRING HEAD PRO CUT
Includes items 21-22
$9.06
Add to Cart
21
PS00082
NLA/SCREW HEX WASHER
Torque Specs 40-60 In/Lbs, 4.5-6.8 Nm.
No Longer Available
Add to Cart
22
AC09365
NLA/ACC RYOBI HOMELIT
No Longer Available
Add to Cart
23
000998265
Trimmer Head
Includes items 24-27
Add to Cart
24
099068001005
Housing & Eyelet (No Longer Available)
Add to Cart
25
06713
Trimmer Head Sprng
$0.92
Add to Cart
26
UP04661A
SPOOL STRING,RED .095
$11.75
Add to Cart
27
308042002
Trimmer Bump Head Knob (No Longer Available)
Add to Cart
28
044101
BLADE GUARD
No Longer Available
Add to Cart
29
638006004
Tri-Arc Blade
$10.50
Add to Cart
30
04409
Cupped Washer
$1.94
Add to Cart
31
UP03492
Hex Flange Nut
Torque Specs 100-120 In/Lbs, 11.3-13.6 Nm.
$2.47
Add to Cart
32
099078001040
PIN HOLDING
$1.04
Add to Cart
33
308487001
SHOULDER STRAP
$5.64
Add to Cart
