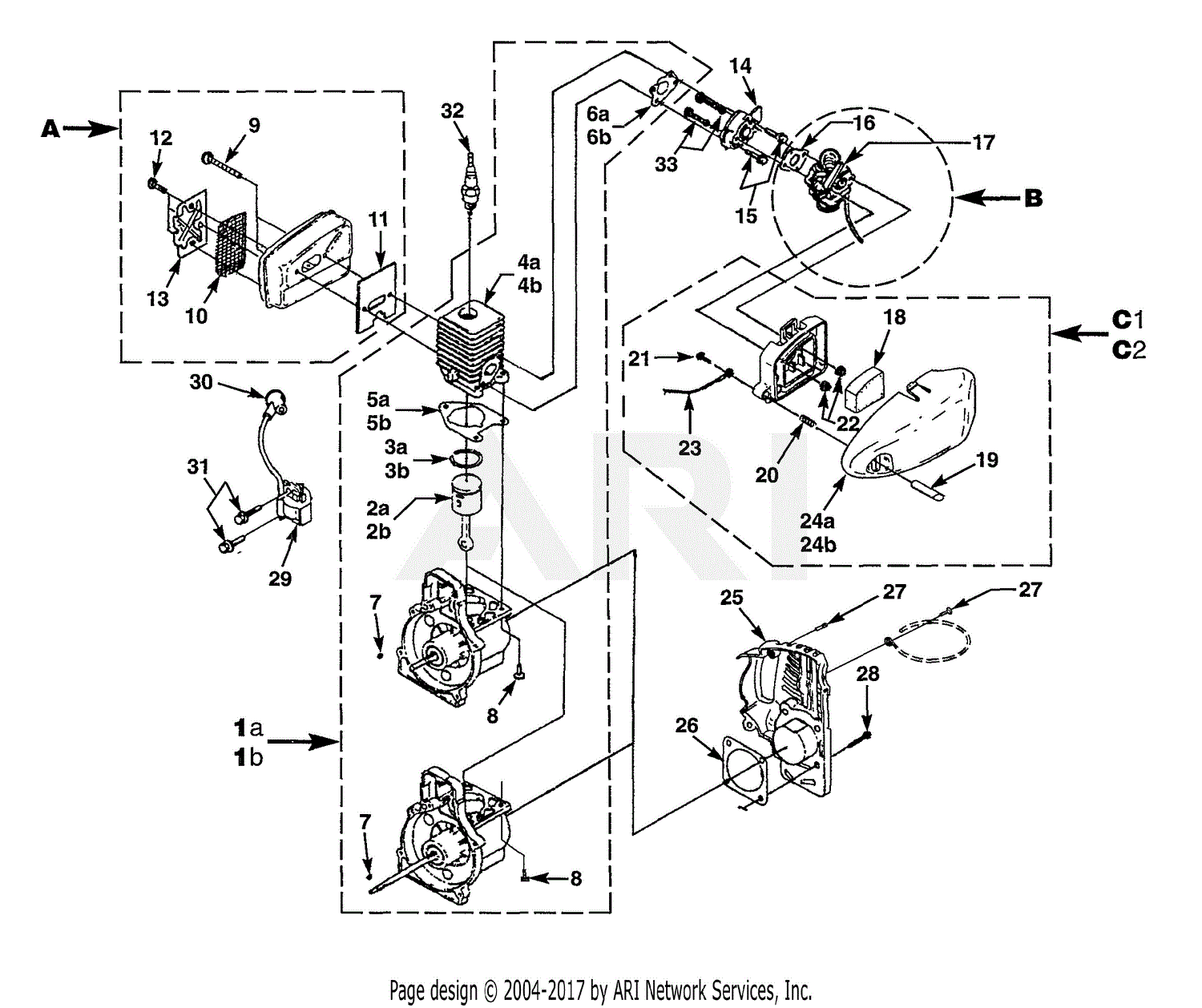

Homelite i730cc String Trimmer UT-20628-A 20628-A-UT i730cc String Trimmer UT-20628-A i730cc String Trimmer Engine Parts Diagram
SWIPE
SWIPE
Engine
Handle, Clutch & Starter
Head & Shaft Assy
i730cc String Trimmer UT-20628-A 20628-A-UT i730cc String Trimmer UT-20628-A i730cc String Trimmer Engine
Move
JavaScript Disabled - Unable to show Cart
1A
UP00386
NLA/SHORT BLOCK, 30CC
No Longer Available
Add to Cart
1B
UP03121A
SHORT BLOCK 30CC SVC/
$203.34
Add to Cart
C1
A07140
AIR FILTER KIT W/PUSH-BUTTON STOP
No Longer Available
Add to Cart
2A
UP03037A
Rod and Piston Kit
$45.76
Add to Cart
2B
984544001
NLA/PISTON ASSEMBLY K (No Longer Available)
No Longer Available
Add to Cart
C2
A07157
NLA/AIR FILTER KIT CL
No Longer Available
Add to Cart
3A
03379
RING-Piston
No Longer Available
Add to Cart
3B
678001002
NO LONGER AVAILABLE
No Longer Available
Add to Cart
4A
UP07146A
30cc Cylinder Kit (No Longer Available)
No Longer Available
Add to Cart
4B
UP07145A
25cc Cylinder Kit
$37.36
Add to Cart
5A
900953001
Gasket
No Longer Available
Add to Cart
5B
900953001
Gasket
No Longer Available
Add to Cart
6A
06900A
NO LONGER AVAILABLE
No Longer Available
Add to Cart
6B
06900A
NO LONGER AVAILABLE
No Longer Available
Add to Cart
7
69250
NLA/KEY
No Longer Available
Add to Cart
8
825691
NLA/SCREW
No Longer Available
Add to Cart
9
82613
TORX TR HD.SCREW PKG
$2.38
Add to Cart
10
06502
NLA/SCREEN,SPARK (No Longer Available)
No Longer Available
Add to Cart
11
98786C
NO LONGER AVAILABLE
No Longer Available
Add to Cart
12
82600
SCREW,T25 TRUSS HD 8
No Longer Available
Add to Cart
13
065011
COVER
No Longer Available
Add to Cart
14
518070001
Heat Dam (No Longer Available)
No Longer Available
Add to Cart
15
82507
NLA/SCREW ST155 3B
No Longer Available
Add to Cart
16
987661
NO LONGER AVAILABLE
No Longer Available
Add to Cart
17
UP04278
NO LONGER AVAILABLE
No Longer Available
Add to Cart
18
06615
NLA/FILTER PKG
No Longer Available
Add to Cart
19
06618A
NLA/SWITCH BUTTON
No Longer Available
Add to Cart
20
95020A
Trimmer Head Spring
$1.00
Add to Cart
21
82513
Thread Form Screw
$1.00
Add to Cart
22
81208
NLA/NUT LOC HX 10 24
No Longer Available
Add to Cart
23
290218001
NLA/ELECTRICAL LEAD T (No Longer Available)
No Longer Available
Add to Cart
24A
UP04688
NLA/AIR FILTER COVER (No Longer Available)
No Longer Available
Add to Cart
24B
UP04633
Air Filter Cover (No Longer Available)
No Longer Available
Add to Cart
25
A07138
NLA/C CASE COVER TBO
No Longer Available
Add to Cart
26
900954001
Gasket (No Longer Available)
No Longer Available
Add to Cart
27
82563
Thread Form Screw
$0.92
Add to Cart
28
82507
NLA/SCREW ST155 3B
No Longer Available
Add to Cart
29
94711CS
NLA/IGNITION MODULE P (No Longer Available)
Add to Cart
30
A33055
NLA/TERMINAL HIGH TEN (No Longer Available)
No Longer Available
Add to Cart
31
82540
SCREW THD FORMING
$1.00
Add to Cart
32
UP03883
NO LONGER AVAILABLE
No Longer Available
Add to Cart
33
04474
NLA/CARB. BOLT (No Longer Available)
No Longer Available
Add to Cart
A
PA01073
Muffler Assembly
$17.57
Add to Cart
B
A04445A
Carburetor Kit (No Longer Available)
No Longer Available
Add to Cart
NA
04474
NLA/CARB. BOLT (No Longer Available)
No Longer Available
Add to Cart
