Homelite VersaTool String Trimmer UT-20816 20816-UT VersaTool String Trimmer UT-20816 VersaTool String Trimmer Engine Internal Parts Diagram
SWIPE
SWIPE
Carburetor - Fuel Tank
Engine Internal
Ignition - Rotor - Starter - Clutch
Muffler - Air Cleaner
Shaft - Spool & String - Grass Deflector

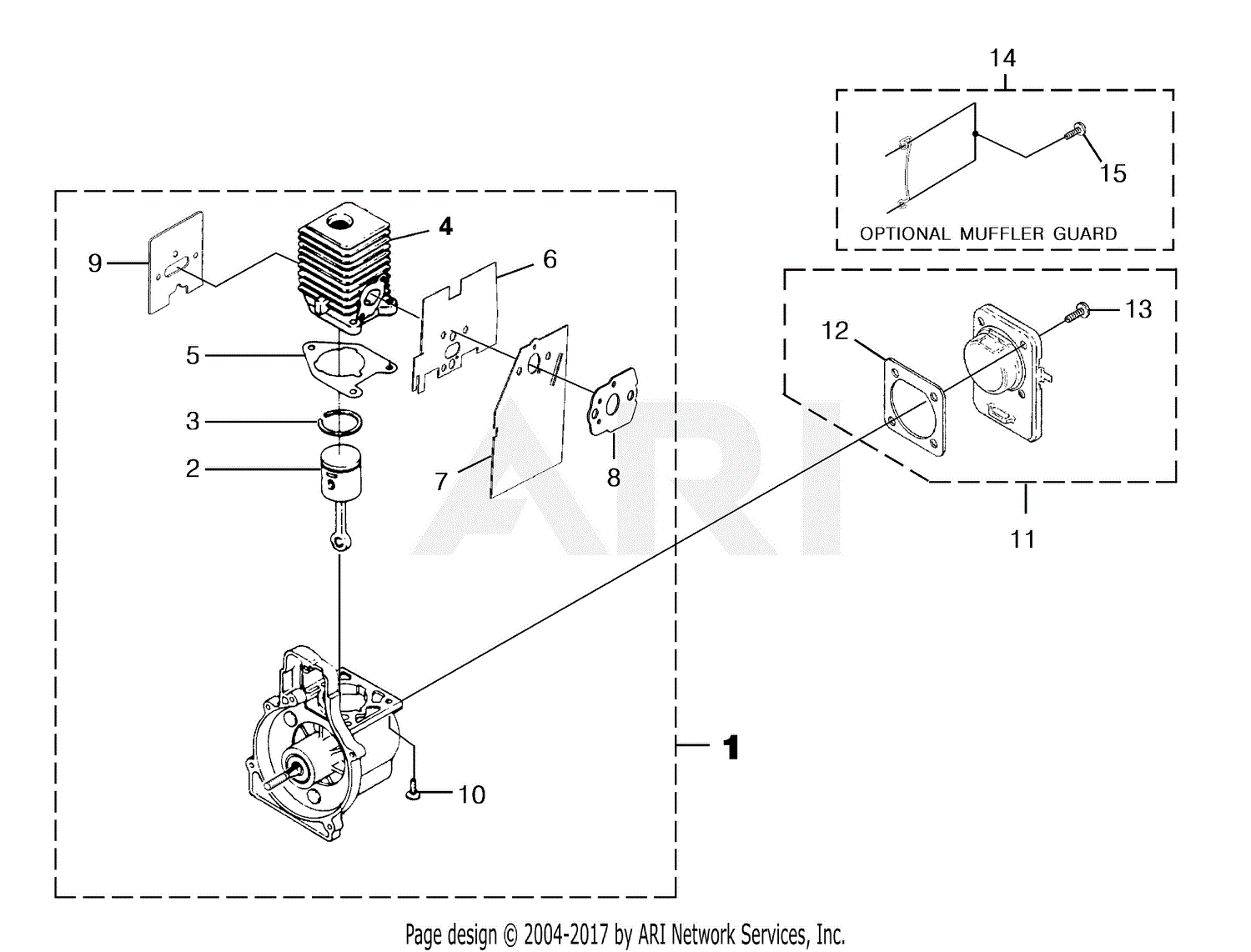

VersaTool String Trimmer UT-20816 20816-UT VersaTool String Trimmer UT-20816 VersaTool String Trimmer Engine Internal
Move
JavaScript Disabled - Unable to show Cart
1
UP06345
NLA/SHORTBLOCK ASSY N
Includes items 2-10
No Longer Available
Add to Cart
2
UP06347A
NLA/PISTON 1 5 16 ROD
Includes item 3
No Longer Available
Add to Cart
3
678001003
Piston Ring
No Longer Available
Add to Cart
4
UP06348
NLA/CYLINDER ASSY TBO
Includes items 5-9
No Longer Available
Add to Cart
5
900953001
Gasket
No Longer Available
Add to Cart
6
PS04739
NLA/GASKET HEAT DAM A
No Longer Available
Add to Cart
7
UP06333
GASKET ADAPTOR TO HE
$10.37
Add to Cart
8
UP06335
NLA/GASKET CARB TO AD
No Longer Available
Add to Cart
9
PS04000
NO LONGER AVAILABLE
No Longer Available
Add to Cart
10
PS02807
SCREW 12 24X.660 PAN
Torque Specs 55-65 In/Lbs; 6.2-7.3 Nm; Required Loctite Red 262
$1.00
Add to Cart
11
UP00019A
NLA/CRANKCASE COVER W
Includes items 12-13
No Longer Available
Add to Cart
12
900954001
Gasket (No Longer Available)
(Also included w/short block)
No Longer Available
Add to Cart
13
PS01565
PAN HEAD SCREW
Torque Specs 35-45 In/Lbs; 4.0-5.1 Nm; Required Loctite Red 262
$1.00
Add to Cart
14
UP04099
NLA/MUFFLER GUARD TBO
Includes item 15
No Longer Available
Add to Cart
15
82541
Screw
Torque Specs 5-20 In/Lbs; .6-2.3 Nm
$0.92
Add to Cart
NA
678001003
Piston Ring
No Longer Available
Add to Cart
