Husqvarna GTH 200 (954140046C) (1999-04) Chassis And Enclosures Parts Diagram

SWIPE SWIPE

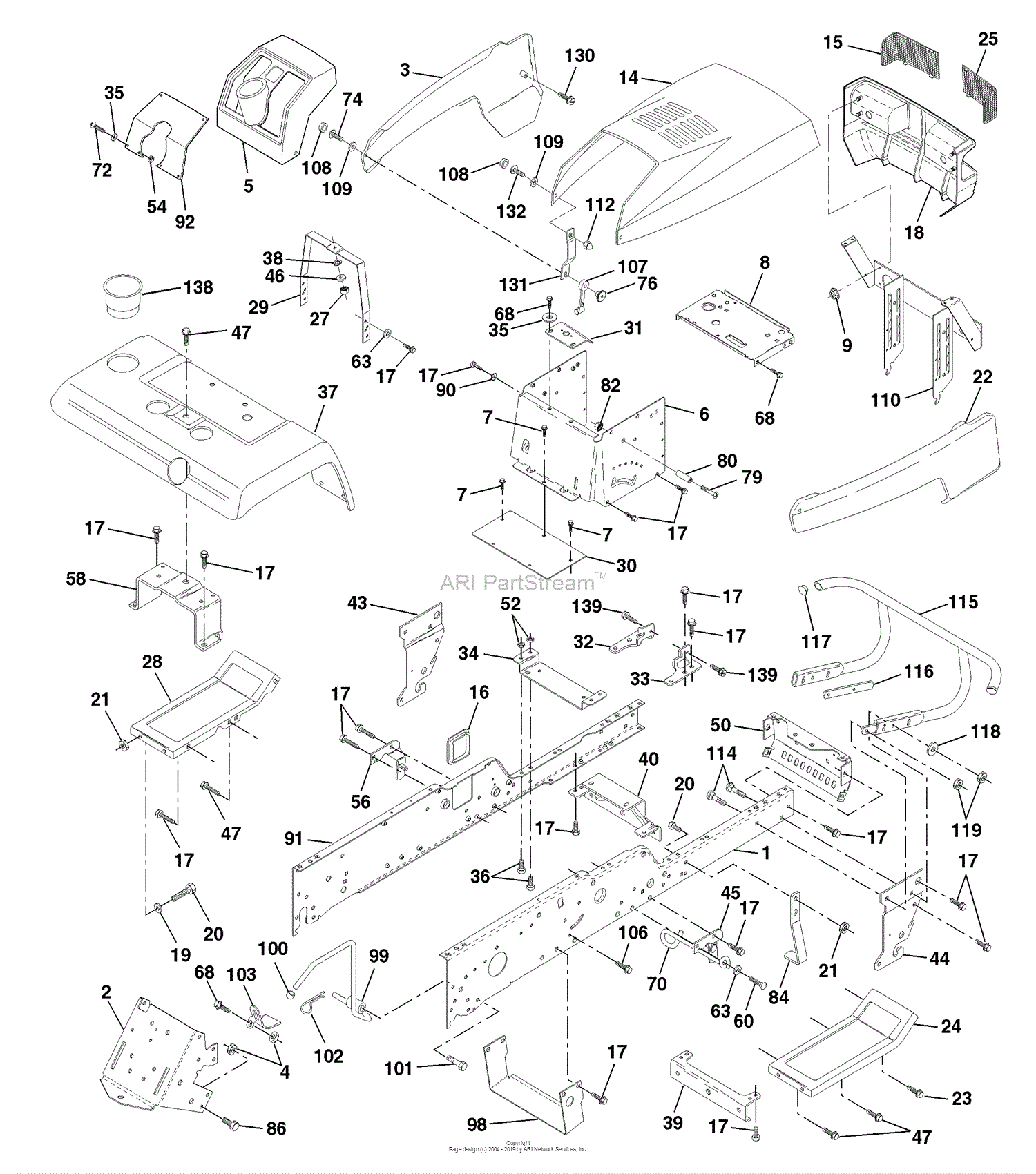

GTH 200 (954140046C) (1999-04) Chassis And Enclosures

Move

JavaScript Disabled - Unable to show Cart

1

532180375

Right Rail Frame

Add to Cart
2

532175282

DRAWBAR, GT

Add to Cart
3

532150189

PANEL/LH

$173.66

Add to Cart
4

873800700

LOCK NUT

Add to Cart
5

532140452

DASH

Add to Cart
6

532157882

DASH VGT, LOWER

Add to Cart
7

596437001

SCREW HEXAGON HEAD TH

Add to Cart
8

532145166

SUPPORT, BATTERY

$5.39

Add to Cart
9

532108067

PAL NUT LT

Add to Cart
14

532125454

HOOD

Add to Cart
15

532157068

LENS LH

Add to Cart
16

532121794

COVER ACCESS

Add to Cart
17

534200501

BOLT HEX PATCH 3/8 16

Add to Cart
18

532157236

FRONT GRILLE (No Longer Available)

Add to Cart
19

596134901

WASHER PLAIN WASHER 3

Add to Cart
20

596564401

BOLT HEXAGON HEAD BOL

Add to Cart
21

596322601

Locknut

Add to Cart
22

532150190

RH PANEL

Add to Cart
23

817000616

Screw

Add to Cart
24

532145243

FOOTREST LT/YT/GT RH

$10.52

Add to Cart
25

532157069

LENS.RH.HUSQVARNA.YTG

Add to Cart
27

532050675

NUT.HEX..25 20.UNC

Add to Cart
28

532147203

FOOT REST LH

Add to Cart
29

532145205

DASH SUPT YP

Add to Cart
30

532145052

SADDLE.HYDRO.95

Add to Cart
31

532161419

BRACKET SUPT 1 PC VGT

Add to Cart
32

532161327

BRACKET

Add to Cart
33

532161326

BRACKET.

Add to Cart
34

532142131

ENGINE SUPPORT BRKT

Add to Cart
35

596204101

WASHER 11/32 X 11/16

Add to Cart
36

596030501

SCREW HEXAGON HEAD SC

Add to Cart
37

532163982

FENDER

Add to Cart
38

596029801

WASHER SPRING LOCK WA

Add to Cart
39

532136961

FRONT AXLE BRACKET

$10.17

Add to Cart
40

532156111

BRACKET, SUPPORT AXLE

Add to Cart
43

532136939

Front Suspension Bracket (No Longer Available)

Add to Cart
44

532136940

Front Suspension Bracket (No Longer Available) (No Longer Available)

Add to Cart
45

532154913

BRACKET SUSP RH

Add to Cart
46

596204201

WASHER 9/32 X 3/4 X 1

$3.44

Add to Cart
47

596564001

BOLT HEXAGON HEAD BOL

Add to Cart
50

532152728

BRACKET, CHASSIS FRON

$10.34

Add to Cart
52

596040501

LOCK NUT PREVAILING T

Add to Cart
54

596040501

LOCK NUT PREVAILING T

Add to Cart
56

532154914

BRACKET ASM, SUSP CHA

Add to Cart
58

532183569

BRACKET ASM., FENDER

Add to Cart
60

874760620

BOLT

Add to Cart
63

596140201

WASHER .406 I.D. X 1

Add to Cart
68

596030701

SCREW HEXAGON HEAD TH

Add to Cart
70

532177679

KEEPER, BELT VGT GROU

Add to Cart
72

874180512

SCREW

Add to Cart
74

871191008

SCREW.PNHD.10 24

Add to Cart
76

596987401

Weldment Nut

Add to Cart
79

874981024

Pan Head Screw

Add to Cart
80

532007206

Spacer

Add to Cart
82

873271000

NUT

Add to Cart
84

532142992

MOWER STOP

Add to Cart
86

596238601

BOLT EXTERNAL HEXAGON

Add to Cart
90

596238701

WASHER.SPRING.LOCK.38

Add to Cart
91

532156586

RAIL, FRAME LH

$101.99

Add to Cart
92

532156283

DASH PLATE

$6.89

Add to Cart
98

532175847

BRKT, CHASSIS SKID

Add to Cart
99

532140871

ROD ASMBLY BYPASS

Add to Cart
100

532071673

PLUNGER CAP

Add to Cart
101

599972501

BOLT,HEX 3/8 16X1.78,

Add to Cart
102

532004497

Retainer Spring

Add to Cart
103

532142273

BRACKET LOCK BYPASS

Add to Cart
106

584953901

Screw, Washer Head

Add to Cart
107

532109808

Hood Latch

Add to Cart
108

532110356

SNAP CAP LT

Add to Cart
109

532110357

WASHER LT

Add to Cart
110

532150200

PIVOT ASM GRL/HD

Add to Cart
112

539108086

Acorn Nut

Add to Cart
114

595901101

BOLT SQUARE ROUND HEA

Add to Cart
115

532170311

BUMPER ASM.

Add to Cart
116

532170310

BUMPER BRACKET

Add to Cart
117

532143679

PLUG PLASTIC

Add to Cart
118

596565301

WASHER PLAIN WASHER 3

Add to Cart
119

596322601

Locknut

Add to Cart
130

817521312

SCREW

Add to Cart
131

532150195

BRACKET.SUPPORT.HOOD/

$3.44

Add to Cart
132

874291006

SCREW 10 24X3/8

Add to Cart
138

583710501

CUPHOLDER.YTGT.TWIST

Add to Cart
139

532171873

BOLT, SHOULDER 5/16 1

Add to Cart
NA

596987401

Weldment Nut

$3.44

Add to Cart
